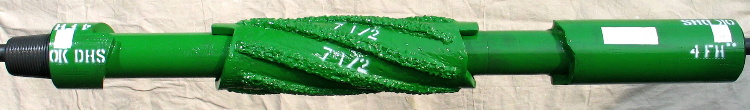

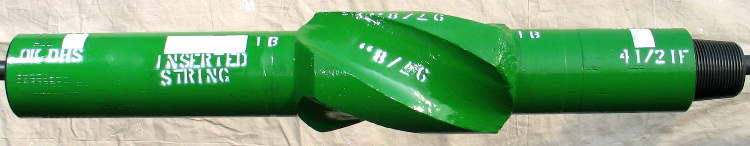

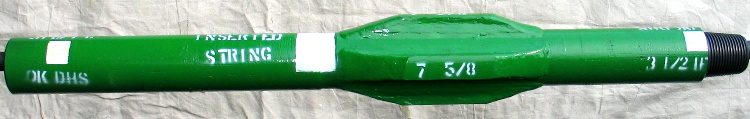

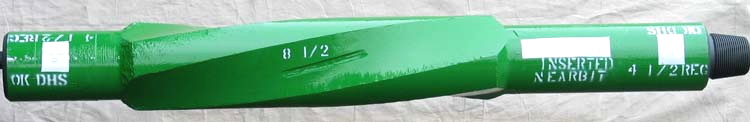

| All stabilizers are
available with vanadium carbide hardfacing or tungsten carbide
inserts. All stabilizers are available in string and nearbit
configurations. |
| Click to Enlarge |
Description |
 |
Tool #1 WELDED
BLADE STABILIZER–Mild steel blades are tacked on a piece
of 4145 drill collar stock.
The whole unit is then pre-heated to the required
temperature and then the blades are mig welded on, and post
heated to ensure that there are no failures. |
 |

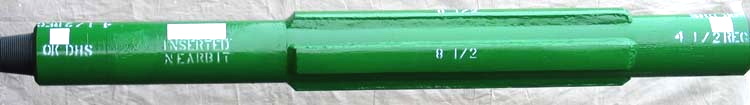

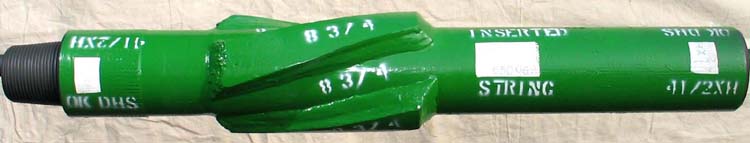

Tool #2 INTEGRAL BLADE STRING STABILIZERS-Machined
from a solid forging of 4145 heat treated steel. This tool will withstand
the most extreme hole conditions without blade failure. |
 |

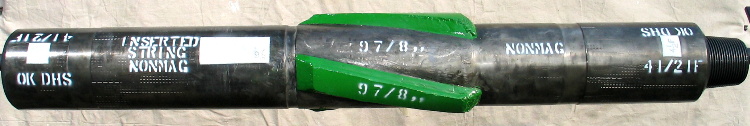

Tool #3 NON-MAG
STABILIZERS-Are available with 3 wrapped blades or 4 or 5
straight tapered blades and can also be bored for float. |
 |
Tool #4 STEERABLE STABILIZER-Designed
for steerable motor drilling, available in 4 or 5 straight
tapered blades and can also be bored for float. |
 |
Tool #5 COMMANDER
INTEGRAL BLADE STABILIZER-Has a longer bearing surface. |
 |
Tool #6 KA TOOL-Designed primarily
for tough Geothermal drilling, the super long 4 straight blades
are 4” wide by 48” long on 12 ¼” through 17 ½” hole
size and 3” wide blades on 8 ½” through 11”. |
 |
Tool #7 LEAD
COLLARS-These furnish the short link between your nearbit
stabilizers that is needed to stiffen your bottom hole assembly. |
 |

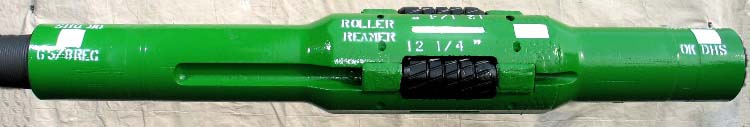

Tool #8 ROLLER REAMERS-Available in
nearbit and string. 2 types of cutters are available: TCI
buttons and Chert cutters. |
 |

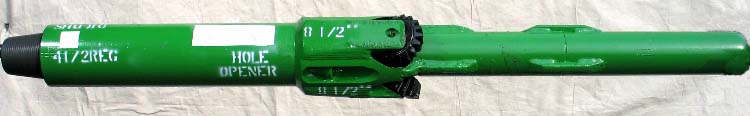

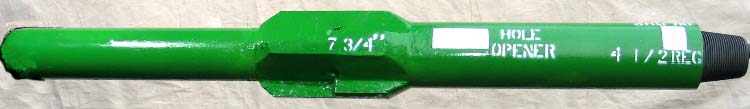

Tool #9 FIXED
DIAMETER HOLE OPENERS-Available in mill tooth or T.C.I.
cutters and open or sealed bearings. Tools are available in
sizes 6” to 26”. They
are available with or without bull nose. |
 |
Tool #10 INTEGRAL CUTTER HOLE OPENER-Machined
from a solid piece of 4145 heat treated stock, 4 integral
cutters are fully hard faced with tungsten carbide button
inserts along with maximum TCI gauge protection. With 5 nozzles, one for
each cutter and one in the bull nose for maximum cleaning. The integral design
offers maximum strength without the inherent weakness of the
pockets of conventional hole openers
while still offering the flexability needed for horizontal
applications. 11”
and larger tools have 5 blades. |
 |
Tool #11 KEYSEAT
WIPER-Double-clutch type, lets you remove Keyseat on both up
and down stoke. Made
with large mesh cutting carbide to ensure long life. Single-clutch type also
available. |
 |

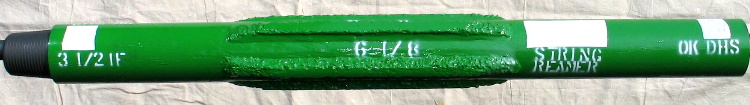

Tool #12 STRING REAMER-Lets you
remove keyseats and dog legs by rotating the drill string. |
 |
Tool #13 NON-ROTATING
RUBBER RIBBED STABILIZER-These are ideal for centralizing
drill pipe inside casing when milling is required on fishing
jobs. The rubber
sleeves ensure that there will be no wear inside casing. |
 |

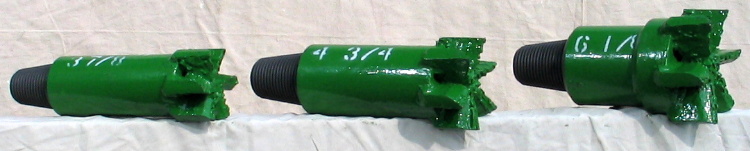

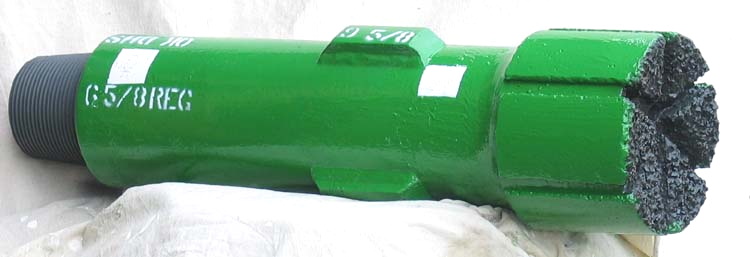

Tool #14 JUNK MILLS-Junk Mills are
designed to mill any type of junk that might be encountered in
cased or open hole, including bit cones, drill pipe, tubing,
bridge plugs, squeeze tools, or any foreign object. The wear pads on our
mills protect your casing from inside damage. Downhole Stabilization
offers two styles; Conventional-light duty milling; Conebuster-for
heavy duty milling. |
 |
Tool #15 THRIFT
MILL-Uses: mill cement and bridge plugs, liners and junk. |
 |

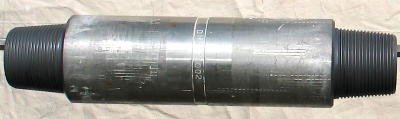

Tool #16 NON-MAG CROSSOVER
SUB-Available in all sizes and connections. |
 |

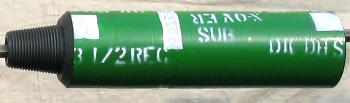

Tool #17 CROSSOVER
SUB-Available in all sizes and connections. |
 |

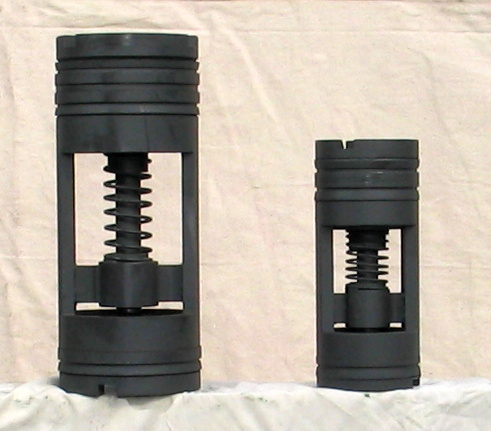

Tool #18 DRILL PIPE FLOAT VALVE-Available
in all sizes both oil and geothermal applications. |
